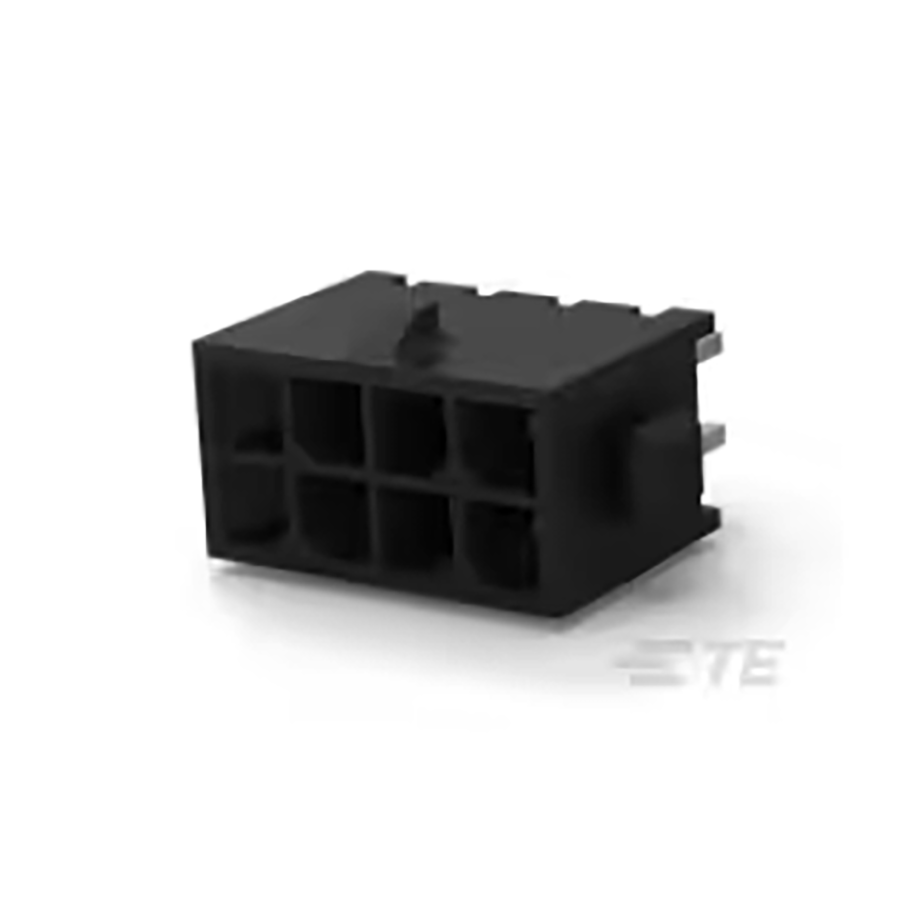

3-794631-8
Manufacturer:
TE Connectivity
Mfr.Part #:
3-794631-8
Datasheet:
Description:
IC and Component Sockets Through Hole Pin Number of Positions:8 Number of Rows:2 Pitch:3 mm Row Spacing:3 mm
| Parameter | Value |
|---|---|
| Length | 16 mm |
| Width | 9.2 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 8.7 mm |
| Packaging | Tray |
| Depth | 8.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Number of Terminals | 8 |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Number of Contacts | 8 |
| ELV | Compliant |
| Connector Type | Pin |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Number of Power Positions | 8 |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Contact Retention | Without |
| Contact Finish - Mating | Gold |
Stock: 938
Distributors
pcbx
pcbxUnit Price$1.40209
Ext.Price$1.40209
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.40209 | $1.40209 |
| 10 | $1.26444 | $12.64440 |
| 25 | $1.17473 | $29.36825 |
| 50 | $1.09138 | $54.56900 |
| 100 | $1.01394 | $101.39400 |
| 300 | $0.98369 | $295.10700 |
| 500 | $0.95434 | $477.17000 |
| 1000 | $0.92589 | $925.89000 |
